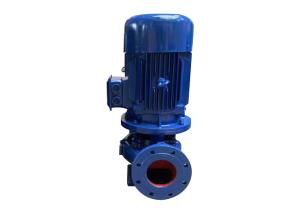

250m3/h Industrial Vertical Booster Pipeline Water Pumps for High Rise Building
Pipeline water pump are for conveying water and chemical and physical properties of the other similar liquid, applicable to industrial and urban water supply and drainage, high-rise buildings, landscape pressurized water and fire sprinkler turbocharged, distant distance transportation, increase water changes the bathroom Pressure and temperature, the use of jockey pump less than 80 degrees.
SLW/SLG pipeline water pump overview:
SLW/SLG horizontal channel pump is for conveying water and other liquids whose physical properties similar to water. Using the medium below 80°C.
1. Flow: 20m3/h-1200m3/h
2. Head: 12m-160m
3. Power: 3kw-160kw
4. Outlet diameter: φ80-φ500mm
5. Temperature: 0~120℃
6. Vertical or Horizontal install
Pipeline water pump applications:
1) ISG/ISW centrifugal pipeline pressure test pump apply to high building water supply, garden irrigation, far distance water supply, etc. Using temperature < 45 degree.
A. Inlet hydraulic pressure less and equal to 0.3Mpa, more and equal to 0.2Mpa; B. water quality should be normal water without fibre or solid particle; C. medium temperature does not exceed 50 degree; D. supply must be 380v
2) Anti-explosion pipeline pressure test pump apply to the transportation of petroleum, chemical liquid, inflammable or explosive liquid without corrosivity. Using temperature < 80 degree.
3) Anti-corrosion and explosion pipeline pressure test pump allpy to the transportation of petroleum, chemical liquid, inflammable or explosive liquid with corrosivity. Using temperature < 140 degree.
Pipeline water pump parameters:
| Model | Flow | Head | Speed | Power |
| SLG/SLW | m3/h | m | r/min | kw |
| 20-160 | 1.8 | 33 | 2900 | 1.1 |
| 40-160 | 6.3 | 32 | 2900 | 2.2 |
| 40-200 | 8.3 | 48 | 2900 | 4 |
| 40-250 | 4.4 | 82 | 2900 | 7.5 |
| 50-250 | 12.5 | 80 | 2900 | 11 |
| 65-250 | 25 | 80 | 2900 | 15 |
| 65-315 | 32.5 | 122 | 2900 | 30 |
| 80-100 | 35 | 13.8 | 2900 | 3 |
| 80-125 | 50 | 20 | 2900 | 5.5 |
| 80-350 | 60 | 140 | 2900 | 55 |
| 100-100 | 130 | 11 | 2900 | 5.5 |
| 100-315 | 70 | 132 | 2900 | 75 |
| 100-350 | 130 | 148 | 2900 | 90 |
| 125-100 | 160 | 12.5 | 2900 | 11 |
| 125-125 | 96 | 22.6 | 2900 | 15 |
| 150-250 | 200 | 20 | 1450 | 18.5 |
| 150-315 | 260 | 28 | 1450 | 30 |
| 150-500 | 151 | 56 | 1450 | 45 |
| 150-315 | 240 | 120 | 2900 | 110 |
| 250-250 | 300 | 18.1 | 1450 | 45 |
| 250-500 | 660 | 68 | 1450 | 185 |
| 300-235 | 900 | 15 | 1450 | 55 |
| 300-250 | 540 | 22.5 | 1450 | 55 |
| 300-300 | 720 | 32 | 1450 | 90 |
| 300-400 | 500 | 54 | 1450 | 132 |
| 350-250 | 120 | 20 | 1450 | 90 |
| 350-400 | 1200 | 50 | 1450 | 110 |
| 350-400 | 905 | 31 | 1450 | 160 |
